Equipment Configuration

This customer comes from Mongolia. Due to the limits in geolocation and policies, this customer needs to depend on import for acquiring excellent copper-molybdenum ore processing machines. So, this customer builds a long-term cooperation with our company. He bought machines like SP flotation machine, Ф2700×4500 ball mill, etc. In order to expand the production, he decides to purchase a whole production plant at this time. Through a series of careful investigation, our specialists and engineers design a 300t/h copper-molybdenum ore beneficiation plant and now it has been working for a long time. And our customer’s benefit increases a lot.

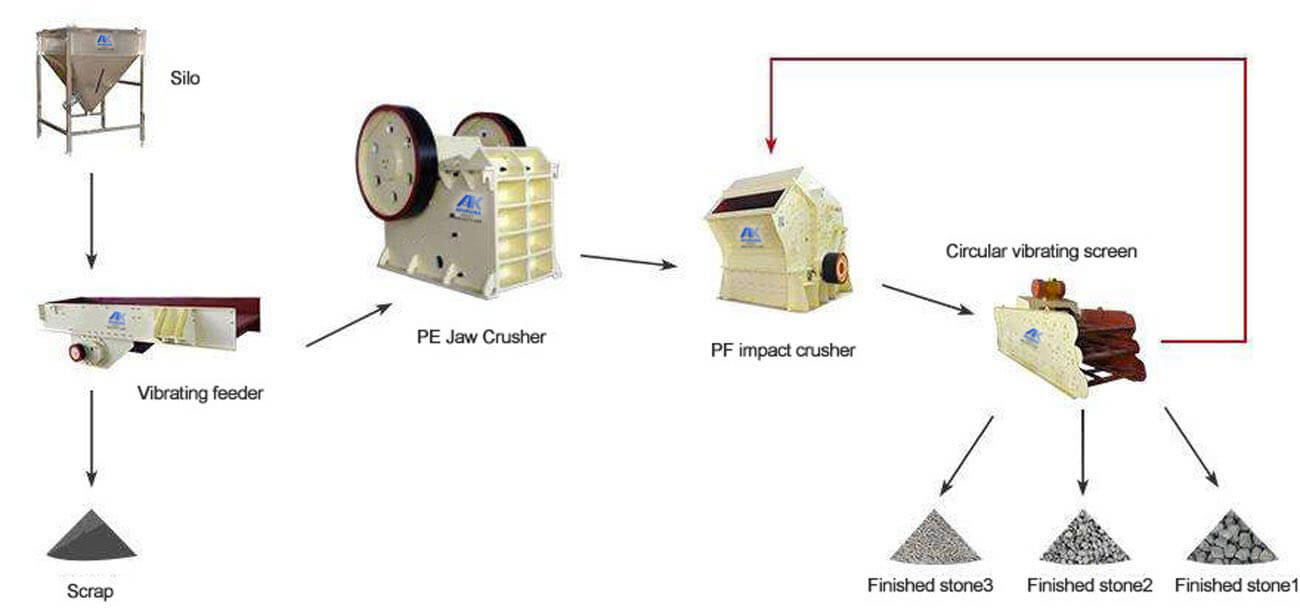

Technological Process

Crushing stage

Through vibrating feeder, large raw ores are continuously fed into PE jaw crusher for primary crushing, then into PEX jaw crusher for secondary crushing, after into circular vibrating screen for screening work. For those larger crushed ores, they would be delivered back to PEX jaw crusher again for continuous crushing. While, for those qualified ones, they will enter into storage bin through conveyors.

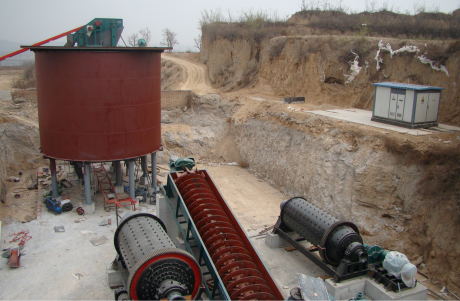

Grinding and classifying stage

Crushed copper-molybdenum ores in storage bin are conveyed into ball mill for being ground. The ground powders will enter into spiral classifier for being classified and washed.

Flotation separation stage

For those qualified copper-molybdenum ore powders, they are conveyed into mixer barrel and added with certain amount of drugs. After the complete mixing and agitation, these powders will enter into flotation machine for dressing work.

Drying stage

Copper-molybdenum ore concentrates produced after the flotation stage are relatively wet. So, they need to subside in thickener and are dried in dryer. Finally, dried finished concentrates will be produced.
