product

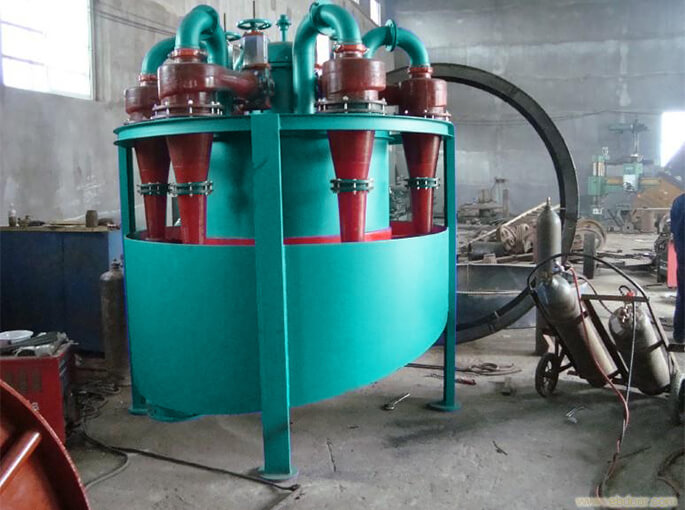

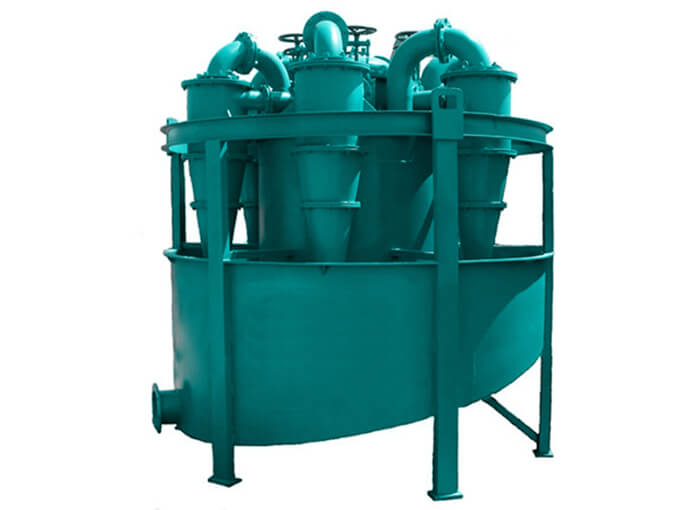

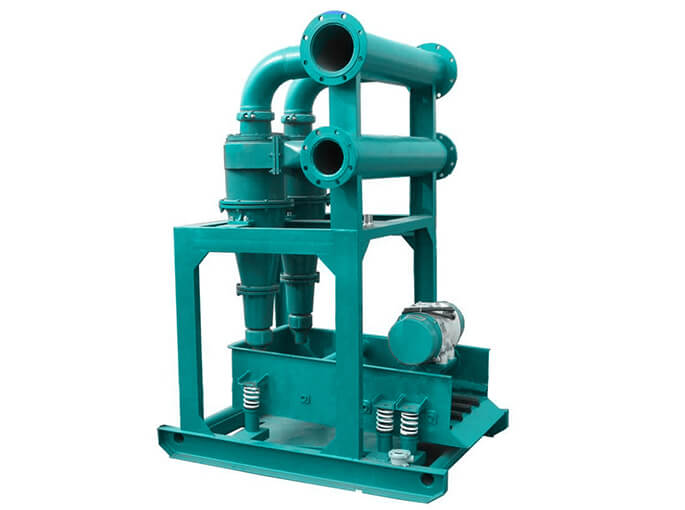

Hydrocyclone

  • Diameter: 125-500mm
  • Capacity :3.1-220t/h
  • Weight:57-718kg

⌈ Application range⌋ :

Hydrocyclones are mainly used for classification, separation, concentration and desliming in the mineral processing industry. Working modes include: classification, concentration, dehydration, desliming, sand removal, washing, super fine classification, etc.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

working principle

The working principle of the hydrocyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixed liquid to be separated enters the cyclone from the feed port of the cyclone at a certain pressure, a strong three-dimensional elliptical shear turbulent movement is generated. Due to the different densities of the particles, the centrifugal force, centripetal buoyancy, and fluid drag are different in size. Due to the action of centrifugal sedimentation, most of the coarse particles (or heavy phase) are discharged through the bottom outlet of the cyclone, while most of the fine particles ( or light phase) is discharged from the overflow pipe, so as to achieve the purpose of separation and classification.

Project Introduction

Introduction

The hydrocyclone is a classification device that uses centrifugal force to accelerate the sedimentation of ore particles. It requires pressure to feed the ore, so it consumes a lot of power, but it occupies a small area, is cheap, has a large processing capacity, and has high classification efficiency.

It can obtain very fine overflow products, and is mostly used for classification in the second stage of closed-circuit grinding. Sometimes it is also used for mud dehydration, divided into pressure type and gravity type, often made of cylindrical structures or metal pipes.

Equipment composition

The hydrocyclone is mainly composed of an overflow water tank, a sedimentation water tank, a cyclone, a support, a raw ore feed pipe, a raw ore pressure water tank, and an overflow water pipe.

Product Advantage

Characteristics of Hydrocyclone

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

Hydrocyclones are mainly used for classification, separation, concentration and desliming in the mineral processing industry. When the hydrocyclone is used as a classification equipment, it is mainly used to form a grinding and classification system with a mill; when it is used as a desliming equipment, it can be used for desliming in a gravity separation plant; when it is used as a concentration and dehydration equipment, it can be used to concentrate tailings It is then sent to fill underground mining tunnels.

Bailing hydrocyclone has a unique structure. It adopts a multi-section column composite structure, and the height of the column can be increased or decreased according to the needs. If the height increases, the overflow fineness will increase, which can reach about 10 μm; and each diameter has a unique cylinder. The combination of length and cone angle can achieve the maximum tangential velocity with the minimum length of the total cyclone, thereby increasing the centrifugal force of the material and improving the classification efficiency.

Working Site

Technical Parameters

Offering customized solutions and price discounts

ModelInside (mm) DiameterOverflow pipe(mm)Sedimentation Tube(mm)Capacity  (m³/h)Inlet(Mpa) pressureMAX (mm) GranularityTaper (°)Classification GranularityDimension  (L×W×H)(mm)Weight (kg)
FX-505011--163--81--20.1-0.40.31510-74160×155×3502
FX-757515--226--122--50.1-0.40.61520-74240×230×4654.2
FX-10010020--408--185--120.06-0.3511520-100268×215×72013
FX-12512525--408--188--150.06-0.3511720-100210×185×62010
FX-15015030--458--2211--200.06-0.351.52030-74310×310×82032
FX-20020040--6516-3225--400.06-0.3522040-100400×365×103054
FX-25025065-10016-4540--600.06-0.3532040-100480×415×121579
FX-30030065-11520-5045--850.04-0.352050-150550×480×1415108
FX-35035080-12030-7060-1000.01-0.362074-200775×605×1765220
FX-500500130-20035-100140-2200.03-0.3102074-220895×830×2050495
FX-610600170-22075-120200-3000.03-0.2132074-2201075×1030×2250830
FX-660660180-24080-150250-3500.03-0.2162074-2201140×1110×2635990
