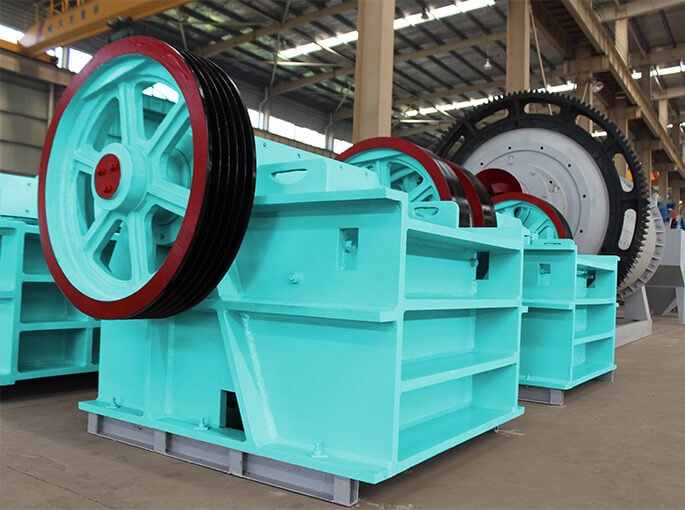

Jaw crusher

Project Introduction

Product Advantage

Characteristics of Jaw crusher

• High ratio of crushing
• Even final size, -Simple structure
• Reliable working condition
• Easy maintenance
• Low operating cost

The whole casting steel process is reliable and beautiful

The core bearing parts of the broken jaw - the moving jaw body and the bearing seat, we use high-quality high manganese steel castings, the process can not only ensure that the crusher seamless docking, but also greatly increase the durability of the wearing parts.

Optimized cavity structure, high efficiency and energy saving

The crushing chamber is deep and there is no dead zone, the feed and crushing ratio is large, and the motion trajectory parameters of the moving jaw are optimized, so that the crushing efficiency of the equipment is higher under the same energy consumption, and the energy saving of the single machine is 15%-30%, and the energy saving of the system is more than doubled.

Protection device, safe response to overload

The elbow plate of the jaw crusher is both a force transfer component and a protection device. When the crusher falls into the material that can not be broken or can not bear, the elbow plate automatically breaks, the crusher stops working, avoiding the damage of the machine and ensuring production safety.

Flexible discharge port adjustment, a multi-purpose machine

Gasket type discharge port adjustment device, so that the discharge port adjustment range is large, enhance the flexibility of equipment use, a multi-purpose machine, in line with customers for a variety of processing requirements.

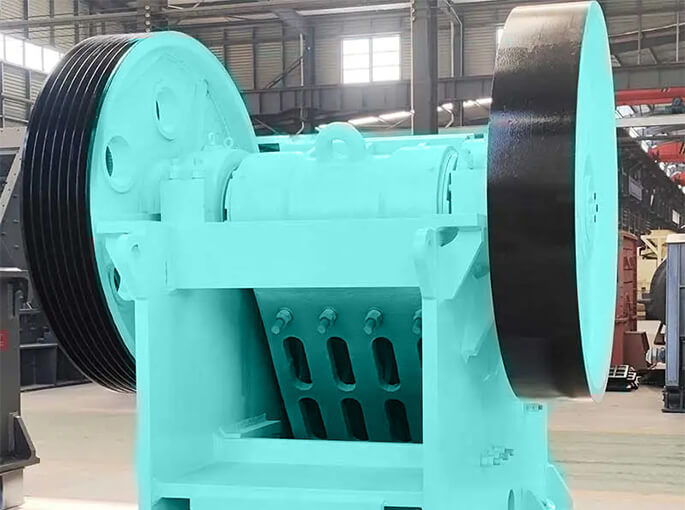

Tooth plate design, higher output

The effective length of the jaw plate is increased by adopting the toothed guard plate, which makes the discharge particle size uniform and the output higher.

The lubrication system is safe and easy to maintain

The equipment uses grease centralized lubrication, safe and reliable, easy parts replacement, maintenance workload is small. The overall structure of the machine is simple, and the stability is stronger.

Equipment composition

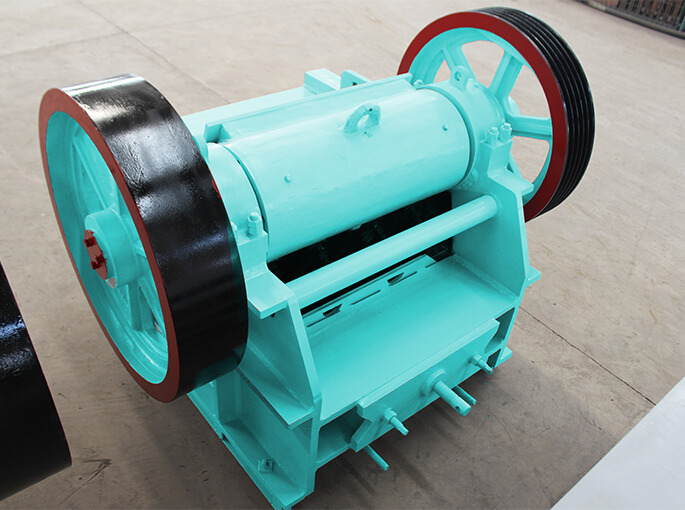

Jaw crusher is mainly composed of frame, eccentric shaft, large pulley, flywheel, side protection plate, elbow plate, elbow plate backseat, adjusting screw, reset spring, fixed jaw plate and movable jaw plate and other components.

Working Site

Technical Parameters

Offering customized solutions and price discounts

Model	Feed size     (mm)	Capacity  (t/h)	Power (kw)	Discharge Port Range	Feeding Size       (mm)	Dimension  (L×W×H)(mm)	Weight （t)
PE 150×250	125	1--3	5.5	10-40	150×250	1000×870×990	1.5
PE 250×400	210	5--20	15	20-60	250×400	1300×1090×1270	2.8
PE 400×600	340	16-60	30	40-100	400×600	1730×1730×1630	7
PE 400×900	340	40-110	55	40-100	400×900	1905×2030×1658	7.5
PE 500×750	425	40-120	55	50-100	500×750	1980×2080×1870	12
PE 600×900	500	50-180	55	65-160	600×900	2190×2206×2300	17
PE 750×1060	630	110-320	110	80-140	750×1060	2660×2430×2800	29
PE 900×1060	685	230-390	110	230-260	900×1060	2870×2420×2940	33
PE 900×1200	750	220-450	110	96-165	900×1200	3380×2870×3330	52
PE 1000×1200	850	315-500	110	195-265	1000×1200	3480×2878×3330	55
PE 1200×1500	1020	400-800	160-220	150-350	1200×1500	4200×3300×3500	100.9
PE 1500×1800	1200	500-1000	280-355	220-350	1500×1800	5160×3660×4248	122
PE 1600×2100	1500	1300-2200	350-380	300-400	1600×2100	6210×4013×4716	150.6
PEX 150×750	120	8-25	15	18-48	150×750	1200×1530×1060	3.8
PEX 250×750	210	13-25	30	25-60	250×750	1380×1750×1540	5.5
PEX 250×1000	210	16-52	30	25-60	250×1000	1560×1950×1390	7
PEX 250×1200	210	20-61	37	25-60	250×1200	2140×1660×1500	9.7
PEX 300×1300	250	36-105	55	20-90	300×1300	2720×1950×1600	15.6
