Mobile Jaw Crusher

  • Jaw size: 1060mm*700mm
  • Engine power : 248kw
  • Capacity: 150-500 T/H

Application areas:

Applicable to all kinds of crawler-type mobile crushing station integrated installation, to meet the broken station movement, climbing function.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Product advantage

The AK series crawler mobile jaw crushing station is specially designed for high hardness and highly abrasive ores. The unique deep cavity jaw crusher design ensures the optimal balance of feed particle size, output and crushing ratio of the crusher. It ensures efficient performance of the equipment even in harsh mining applications. Coupled with the high-strength and specially designed crawler chassis of the AK series crawlers, it can achieve full coverage of movement in complex terrain such as mining areas while ensuring the excellent performance of the crushing host. The feeder, conveyor, powertrain and electrical device integrated with the body ensure the continuity and reliability of the production line. AK series crawler mobile jaw crushing station is suitable for coarse crushing operations in mining, aggregate processing, construction waste recycling and other fields.

Product introduction

Introduction

The C-type jaw crusher adopts a unique modular, non-welded frame structure with two hot-rolled rigid side panels firmly bolted to the high-quality cast steel frame by means of precision-machined pins, which avoids the shortening of the durability of the equipment due to the concentration of stress, such as welded joints, when the equipment is subjected to impact loads.

Product Advantage

Characteristics of Jaw crusher

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

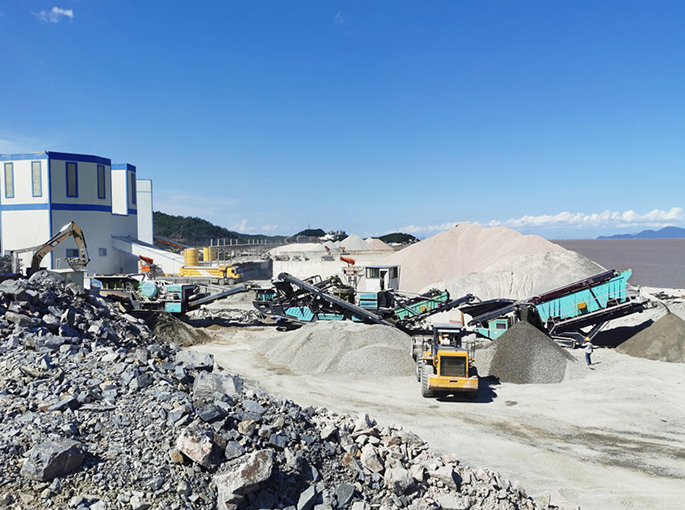

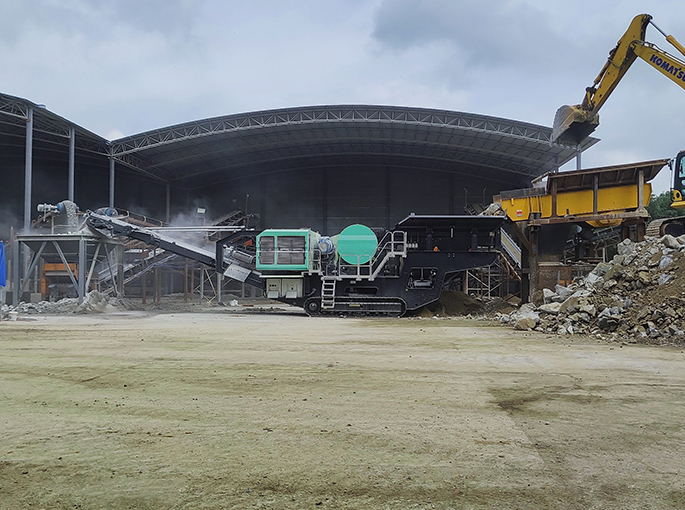

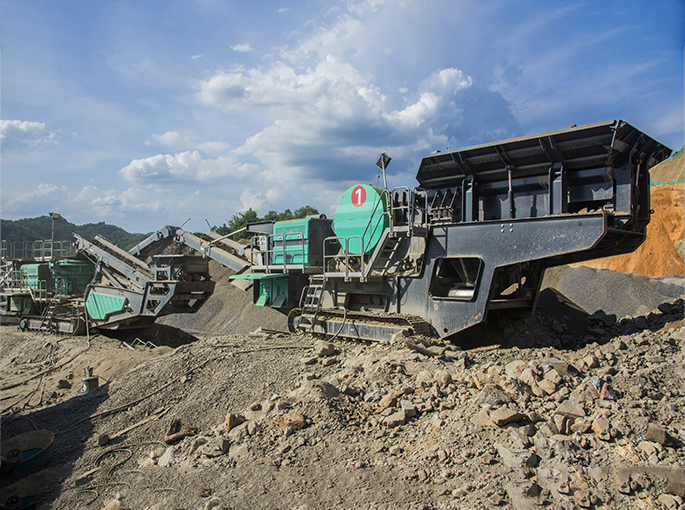

Working Site

Technical Parameters

Offering customized solutions and price discounts

modelAK96AK106AK120
PowerVehicle drive formDiesel engine/mains electricityDiesel engine/mains electricityDiesel engine/mains electricity
Total powerCumminsl24kwCumminsl63kwCummins336kw
Host and beltTotal Weight36t42t60t
Machine processing capacity150-250t/h200-350t/h350-550t/h
Crushing host modelPE750x1060PE900x1200PE1200x1500
Driving power90kw110kw1 60kw
Drive formMotor/HydraulicMotor/HydraulicMotor/Hydraulic
Inlet size750x1060900x12001200x1500
Discharge opening size80~23595~265160~320
Discharge belt size800x100001000x115001200x12500
Dimensions13550x3500x280015550x3500x280016550x3800x3100
Standard itemsManual control, wireless remote control, automatic feeding system.
Optional itemsSide conveyor belt, iron remover, dust removal spray system.
