Products Rotary kiln

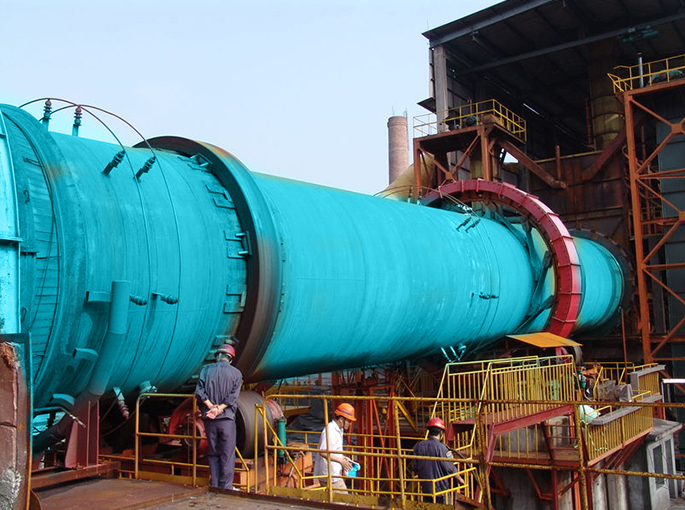

Rotary kiln

Gradient: 3.5-4%
Motor power: 30-420 kw
Capacity:2-125t/h

Advantages

1. The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis.

2. Rotary kiln is continuous working, without change the existing operating parameters, without consuming any material, the overall economic efficiency improved significantly.

3. Large impact energy, high processing speed Kiln knot ring accident , can clear the kiln knot ring in a few minutes.

4. The machine has many functions, you can prevent the effective removal of knot ring, also can crush the big and small size egg ball.

CHAT ONLINE

WhatsApp:+8617739786040
Email:[email protected]

   

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Working Principle

The materials to be burnt get into the stove from the higher end of the cylinder. Due to the slope and slow rotation of the cylinder, the material moves around from top to bottom along the axis to finish its process. At last, the finished materials get into the cooler through the burner hood. The fuel gets into the kiln through the head of the kiln. The waste gas will be discharged from the end of the kiln after exchanging heat with the materials.

Project Introduction

Introduction

Rotary kilns can be divided into cement kilns.metallurgical chemical kilns and lime kilns according to different processing materials.Cement kiln is mainly used for calcining cement clinker, divided into dry production of cement kiln and wet production of cement kiln two categories.Metallurgical and chemical kilns are mainly used for magnetization roasting of lean iron ore in iron and steel plants in metallurgical industry Oxidation roasting of chromium and nickelite; Refractory plant calcined high alumina vanadite ore and aluminum plant calcined clinker and alumina hydroxide; Chemical plant roasting chromium ore and chromium ore powder and other minerals.

Product Advantage

High ratio of crushing
Even final size, -Simple structure
Reliable working condition
Easy maintenance
Low operating cost

Technical Parameters

Offering customized solutions and price discounts

Model	Barrel(m) Diameter	Cylinder length(m)	Cylinder Speed (r/min)	Capacity (t/d)	Speed Ratio	Main motor power(kw)	Number of Supports	Gradient(%）	Weight (t)
φ2.5×40	2.5	40	0.44-2.44	180	48.58	55	3	4	149.61
φ2.5×50	2.5	50	0.62-1.86	200	48.58	55	3	4	187.37
φ2.5×54	2.5	54	0.48-1.45	280	163.36	55	3	4	196.29
φ2.7×42	2.7	42	0.1-1.52	320	163.36	55	3	4	198.5
φ2.8×44	2.8	44	0.437-2.18	450	40.17	55	3	3	201.58
φ3.0×45	3.0	45	0.5-2.47	500	48.57	75	3	3	201.94
φ3.0×48	3.0	48	0.6-3.48	700	163.36	100	3	3	237
φ3.0×60	3.0	60	0.3-2	800	157	100	3	4	310
φ3.2×50	3.2	50	0.6-3..0	1000	99.96	125	3	3.5	278
φ3.3×52	3.3	52	0.266-2.66	1300	27.707	125	3	3.5	283
φ3.5×54	3.5	54	0.55-3.4	1500	34.601	220	3	3.5	363
φ3.6×70	3.6	70	0.25-1.25	1800	35.526	125	3	3.5	419
φ4.0×56	4.0	56	0.41-4.07	2300	35.714	315	3	3.5	567
φ4.0×60	4.0	60	0.396-3.96	2500	42.226	315	3	4	510
φ4.2×60	4.2	60	0.41-4.07	2750	48.57	375	3	3	633
φ4.3×60	4.3	60	0.396-3.96	3200	163.36	375	3	3	583
φ4.5×66	4.5	66	0.41-4.1	4000	157	560	3	4	710.4
φ4.7×74	4.7	74	0.35-4	4500	99.96	630	3	3.5	849
φ4.8×74	4.8	74	0.396-3.96	5000	27.707	630	3	3.5	899
φ5.0×74	5.0	74	0.35-4	6000	34.601	710	3	3.5	944
φ5.6×87	5.6	87	MAX4.23	8000	35.526	800	3	3.5	1265
φ6.0×95	6.0	95	MAX5	10000	35.714	950	3	3.5	1659

Request For Quotation

Please tell us your needs such as the capaicty, materials, input and output size, we send the latest price list and quotation to you.
