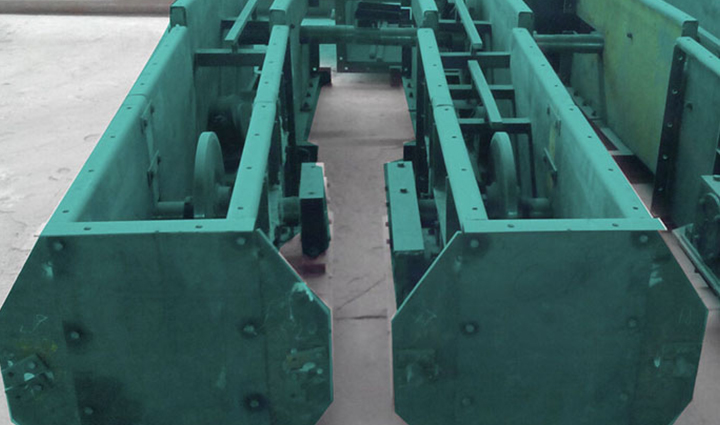

Products Scraper conveyor

Scraper conveyor

Model:MU series
Power (kw):2.2-75
Feeding size(mm):≤36

Can be long-term stable, reliable, stable and continuous operation under the specified environmental conditions;

Meet the requirements of continuous, intermittent, frequent start and stop, start under full load under various operating conditions. The conveying form has L type, C type, Z type, the conveying capacity can be adjusted.

CHAT ONLINE

WhatsApp:+8617739786040
Email:[email protected]

   

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Product details

The body and transmission part of the scraper are fully enclosed structure. The upper and lower corners adopt the sprocket group transition form, the corner is operated without damage, to ensure the normal operation of the whole machine, to achieve no drift chain, no deviation, no accumulation of material;

Project Introduction

Introduction

The scraper of the scraper conveyor is fixed on the chain to form a scraper chain. When the transmission part of the machine head drives the sprocket on the machine head shaft to rotate, the scraper chain circulates and drives the material to move along the chute until it reaches the bottom discharge port. Complete material delivery.

Product Advantage

High ratio of crushing
Even final size, -Simple structure
Reliable working condition
Easy maintenance
Low operating cost

Technical Parameters

Offering customized solutions and price discounts

Model	FU-150	FU-200	FU-270	FU-350	FU-410	FU-500	FU-600	FU-800
Slot width(mm)	150	200	270	350	410	500	600	800
Feeding size(mm)	≤8	≤10	≤14	≤18	≤21	<25	≤30	≤36
Optimal size(mm)	≤4	≤5	≤7	≤9	≤11	≤131	≤15	≤18
Speed (m/s)				Yield (m3/h)
0.17	8	16	25	40	65	10o	1401	220
0.21	10	22	40	50	8o	128	175	280
0.26	15	30	5o	80	120	160	220	350
0.36	20	40	70	110	160	220	340	480
0.4	25	58	90	140	190	270	400	550
Power (kw)	2.2--5.5	2.2--7.5	3--15	4--22	4--30	5.5--45	5.5--55	7.5--75
Chain Pitch(mm)	1251	125	185	200	200	300	300	350

Request For Quotation

Please tell us your needs such as the capaicty, materials, input and output size, we send the latest price list and quotation to you.
