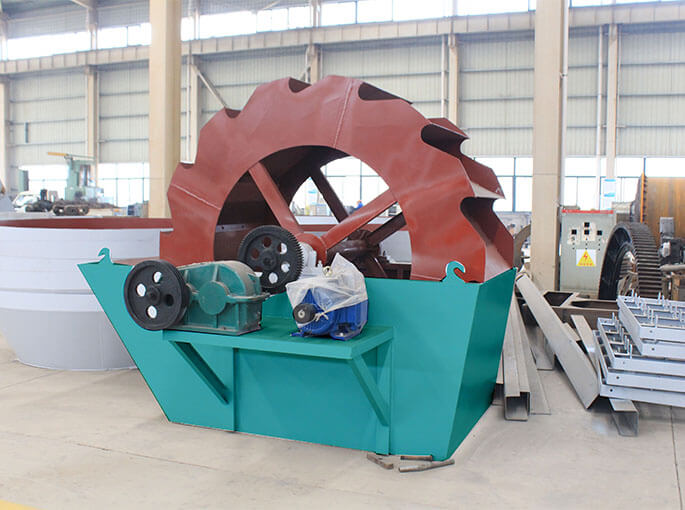

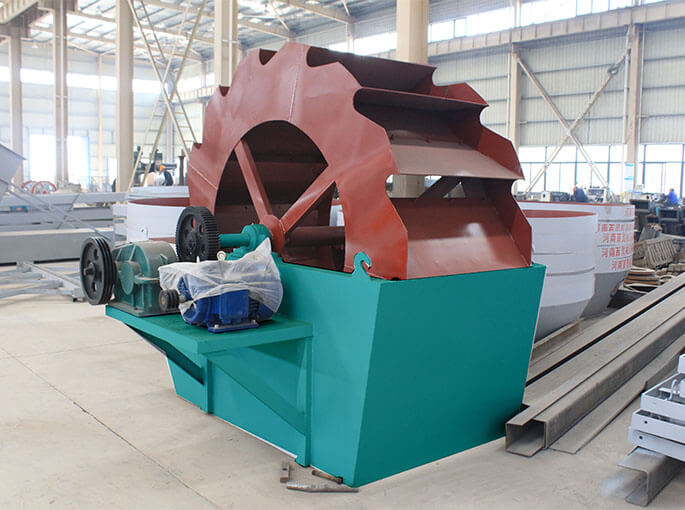

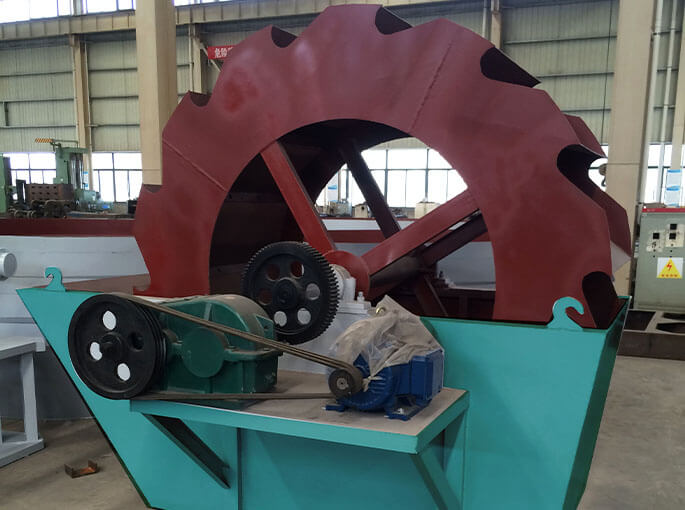

Wheel type sand washing machine

  • weight: 4300-9900kg
  • Production capacity : 15-200 t/h
  • Motor Power:4-11kw

⌈ Application scope ⌋ :

Widely used in construction sites, sand and gravel yards, glass factories, power stations, concrete masonry, and electrical fields.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Process characteristics

The sand washing machine has significant features such as simple structure, stable operation, clean sand washing, and high production capacity.

Project Introduction

Introduction

The wheel bucket sand washing machine is mainly used for the washing and dehydration of construction sand and stone materials, and is a necessary equipment for water washing sand production in conjunction with the sand making machine.

It can wash away trace amounts of stone powder and impurities from the mixed sand produced by the sand making machine, thereby improving the quality of the sand. It is suitable for industries such as construction sites, sand and gravel factories (sand and gravel factories), and concrete dam construction sites in hydropower stations.

This machine has high cleanliness, reasonable structure, large processing capacity, low power consumption, and less sand loss (during the sand washing process)

Product Advantage

Characteristics of Wheel type sand washing machine

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

1.Large processing capacity and low production cost.

2.Multiple effects, high cleanliness.

3.Simple structure and low failure rate.

Working Site

Technical Parameters

Offering customized solutions and price discounts

ModelWheel bucket diameter(mm)Number of bucket rowsCapacity  (t/h)Bucket Speed(r/min)Feed Particle size(mm)Power (kw)Dimension  (L×W×H)(mm)Weight (kg)
XSD-220022002602.3≤1032500×1400×21001900
3902.3≤1042500×2000×21002300
XSD-2600260021002≤1043200×1400×27002500
31402≤105.53200×2000×27003000
XSD-2800280021102≤105.53500×1400×29002800
31502≤107.53500×2000×29003400
41801.8≤10113500×2600×29004200
XSD-3000300021502≤107.53700×1400×31003200
32202≤10113700×2000×31004000
42301.8≤10153700×2600×31004800
XSD-3200320021601.8≤10113950×1500×33005600
32301.8≤10153950×2200×33006500
42501.6≤1018.53950×2900×33007400
XSD-3600360043001.6≤10224200×3700×37009800
